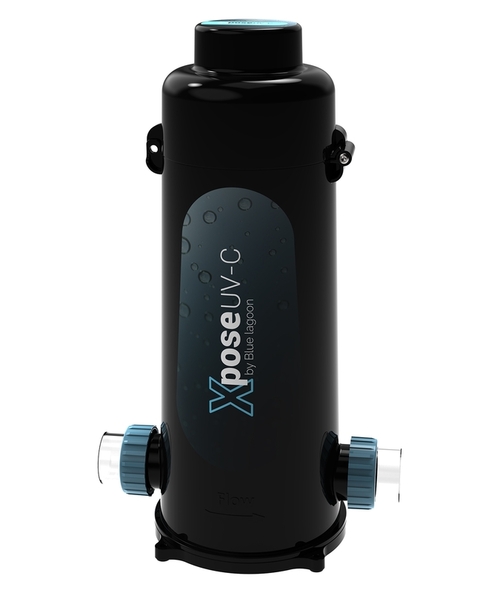

UV-C system 42W

Discover a powerful plug-and-play concept that is easy to install. Now all pool owners can enjoy safe and healthy swimming water with our UV-C technology. By exposing the water to ultraviolet (UV-C) radiation, we utilize the most effective disinfection method to destroy microorganisms in domestic pools with an efficiency of up to 99.9%. As a result, an Xpose UV-C pool system can reduce chlorine levels by 50-80% and provide safe, clean, and healthy water.

Dive into a revolutionary solution that eliminates the concerns of traditional water treatment. With the Xpose UV-C system, you can enhance your pool experience by creating a clean and healthy pool. Enjoy crystal-clear water and improved safety while saving on operational costs.

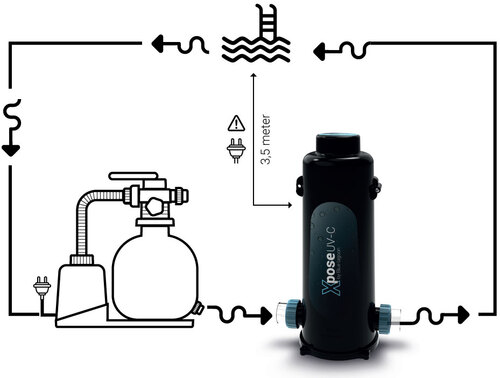

Forget about complicated installations or complex maintenance. The Xpose UV-C system is designed with user-friendliness in mind. You can easily install it yourself and start enjoying its benefits immediately. It is the ideal solution for both new and existing pools.

Take control of your pool's hygiene and create an environment where you can swim safely and healthily. Choose the Xpose UV-C pool system and experience a new standard in pool care.

Here are the key features that make the Xpose system the perfect choice for your pool:

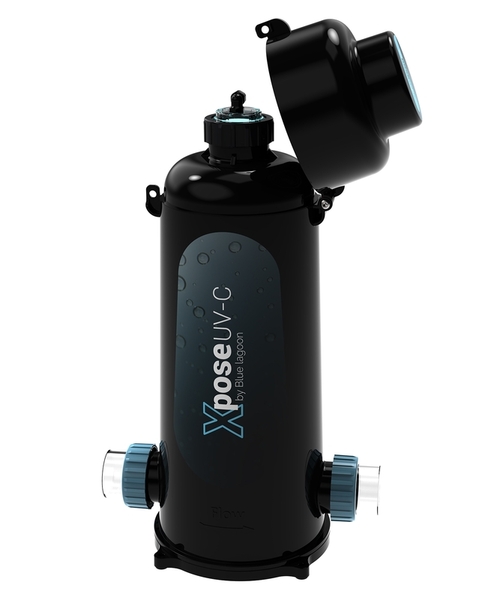

1. Safety/protection cover: The Xpose unit comes with a protective cover to ensure that the UV-C light remains undamaged and the lamp connection stays intact.

2. Padlock prepared:
   The Xpose unit is prepared for a padlock (8 mm) for added security. Please note that the padlock is not included.

3. Automatic air bleed:
   The Xpose system has a built-in automatic air bleed that ensures optimal performance of the UV-C unit.

4. Weather resistant:
   Designed to withstand the elements, the Xpose system is built to resist rain, ensuring durability and reliability.

5. Standalone operation:
   Enjoy the convenience of a standalone system without the need for wall mounting, making installation hassle-free.

6. UV-C safety screen:
   With a built-in UV-C screen, the Xpose system prioritizes safety by protecting against potential eye damage.

7. Compatible with all pool brands:
   The Xpose system is compatible with all major pool brands, thanks to the included hose tail that easily connects to most types of pool hoses.

8. Ground secure mounting holes:
   The Xpose unit features four 6.5 mm mounting holes, allowing for secure ground mounting for extra stability.


Specifications:

Lamp power, W: 42
Supply voltage: 230V 50Hz
Max input current, A: 0,25
Lamp life, hrs.: 9000
Height, cm: 55,0
Diameter, cm: 20,0
Recorded flow for 30mJ/cm2, m3/hr: 14
Max. flow, m3/hr: 15
Max. pressure, bar: 1
IP rating: IP66
Pressure loss: 0.027 bar @ 5 m3/hr

Pressure loss: 0.11 bar @ 10.5 m3/hr
Pressure loss:0.21 bar @ 15 m3/hr
Max temperature, °C: 40
Min. temperature, °C: 1
Connection size, mm: 32 / 38 / 50
