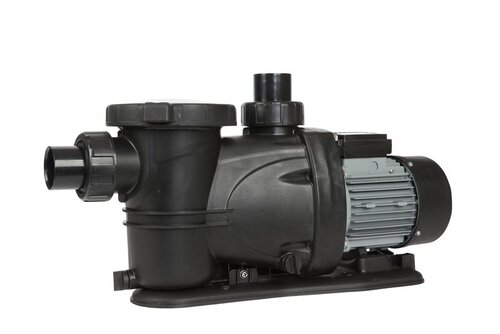

Pump 1.6kW, 2HP with Prefilter

PP201

1600 Watt circulation pump for filter systems. The pump has sufficient capacity for pools up to 170,000 litres. Can work with water up to +35 ° C.

Max Pool Volume, l	170000.0
Capacity, l/hr	27000.0
Timer, h	No
Hose Connection, mm	50; 38
For Salt Water Pools	No

Download Product Manual

Description

This powerful self-priming pump is part of the Premium Range and is ideal for large pools up to 170,000 litres. It has a high filtration capacity of up to 27,000 litres per hour, making it perfect for filter tanks with a diameter of 800 mm. The transparent filter lid allows easy inspection of the large internal pre-filter basket. Grey-coloured housing and IPX5 protection class ensure durability and splash resistance.

Specifications

Pumping force W: 1600
Power, HP: 2
Max. pool volume L: 170,000
Power Supply V/Hz: 230/50
Max. temperature °C: 35
Hmax m: 11
Hmin m: 4
Qmax m³/h: 27
Current A: 7.3
RPM: 2900
Insulation class: F
Protection class: IPX5
Filter size: For Ø800 mm filters

Qmax: The maximum number of litres of water the pump can move when the pump is located at the same level as the water (Hmax= 0).
Hmax: The maximum height the pump can push water up vertically at a pressure of 0.0 bar (at the same level).
