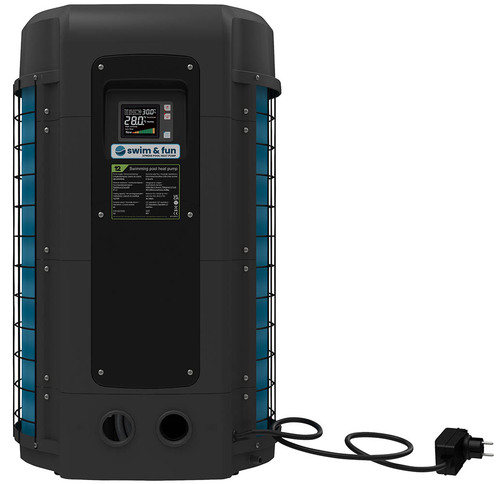

Xpress 12 Heat Pump
1094
This 12.2 kW Xpress heat pump is energy efficient and environmental solution, as more than 80% of the energy that the heat pump produces is collected from the air. Xpress is a quiet plug and play model.
Which means that you can quickly and easily mount it yourself for pools up to 38 m3 using a thermal cover. The pump works from +5 degrees and can be used in both chlorine and salt water.
| Compressor Type | Conventional |
| Max Pool Volume, l | 38000.0 |
| Max. Recomended Pool Volume, l | 30,000 |
| Hose Connection, mm | 38 |
| COP Value | 4.9 |
| Min operating temperature, °C | 5 |
| Capacity, kW | 12.2 |
| WiFi Connection | No |
| Color | Black |
Description
• No set-up costs
• High energy efficiency
• Quiet operation
The Swim & Fun Xpress heat pump collects energy from the air and transfers it to the pool water. For every kW used, the heat pump produces 5,9 kW** for the pool. This makes it a highly energy efficient and environmental solution, in that more than 80% of the energy produced by the Xpress heat pump is collected from the air.
The Swim & Fun Xpress heat pump is very quiet, allowing you to enjoy your swimming experience in wonderfully warm pool water -- even while the pump is in operation. And the Xpress heat pump is easy to operate using the intuitive digital control panel. The pump is maintenance-free and housed in a UV-resistant, stainless polymer material of high quality.
Works with both low-current circulation pumps and sand filter systems. Comes with an RCD integrated mains plug, 4 metre cable and 38, 32, 48 and 50 mm hose couplings.
Suitable for all pools up to 38,000 Litres/38 m3. The pump functions at temperatures from 5ºC and up and can be used in both chlorine and salt water.
Remember Isothermal Cover (Summer Cover).
It is necessary to use an isothermal cover (thermocover) when the pool is not in use, to keep the heat in the pool – especialy at night and on cold days.
Specifications
Heating capacity kW: 12.2
Power input kW: 2,07
Max. pool volume m3*: 38
Recom. pool volume nordic countries m3*: 25-30
Temperature setting range (heating), °C: 8-40
Ambient temperature down to down to +5ºC
Effect A: 12
COP**: 5,9
Powersupply V/Ph/HZ: 230/1/50
Control: Digital with built-in diagnostic
Heat exchanger: Titanium
Compressor numbers: 1
Compressor type: Rotation
Cooling agent, freon-free: R32
Cooling agent, kg 0.95
Fan numbers: 1
Fan power W: 80
Fan speed rpm: 1200
Fan direction: Vertical
Noise level 10 m dB(A): 44,7
Hose connection: 32/38/48/50 mm
Flow m3/t: 5-12
Protection: IPx4
RCD protection mA: 30
Measure, net L/B/H: 467/456/750
Measure, gross L/B/H: 470/490/770
Net/gross weight kg: 45,6/46,6
EAN 5704841010949
* From April to September, completely insulated with pool cover, out of the wind and in the sun.
COP** 5,9 (Maximal poolvolym vid fullständig isolering med poolöverdrag, med full sol och utan vindpåverkan.
** Mätförhållanden: omgivande temperatur 24 ºC, vattentemperatur 27 ºC, relativ luftfuktighet 70 %.)
How to find the right heat pump
It is necessary to understand that the heat capacity and the performance of the pump depend on the climate you live in. Areas with cold climates have a shorter swimming pool season. Therefore, hot pool water in the north requires heat pumps with higher capacity than in medium to warmer climates.
The illustration is an approximate estimate of the climate differences, and thus an indication of what type of heat pump you should consider buying to get the right performance.
